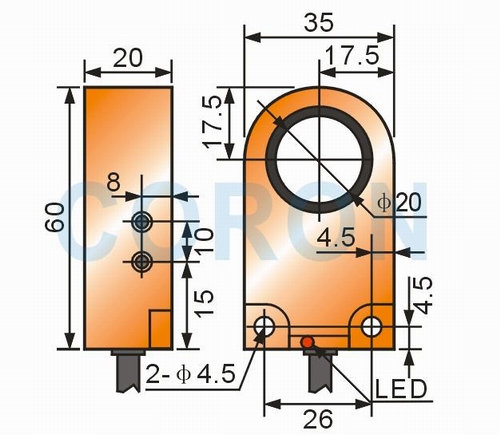

Form

R20

Installation form

Unburied

Detection distance

φ20mm hole diameter

Minimum detector

φ0.5mm

Model number

CLJ-R20-20ASC-T

Output method

NPN+PNP transistor output

Action pattern

Normally Open + Normally Closed

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤2000Hz

Repeatability

<1%

Output indicator

Red LED

Environmental temperature

-25℃-+75℃

Environmental humidity

35-95%RH

Shell material

PBT

Connection method

2m cable, M12 plug-in optional

Protection class

IP67
